Specification:
| Basic Information | ||
| Supported CPU | Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket | |
| Chipset | Intel H310 Chipset | |
| Form Factor | 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm) m-ATX Form Factor |
|
| Expansion Slots | ||
| PCI | 1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots |
|
| Memory | ||
| Type | Supports Dual-Channel mode | |
| Slots | 2 x DDR4 memory slots | |
| Supported Memory | Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC) Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC) Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Mamory | 32GB | |
| Graphics | ||
| Graphics | 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz 1 x HDMI™ port, supports a maximum resolution of 4096×2160@30H |
|

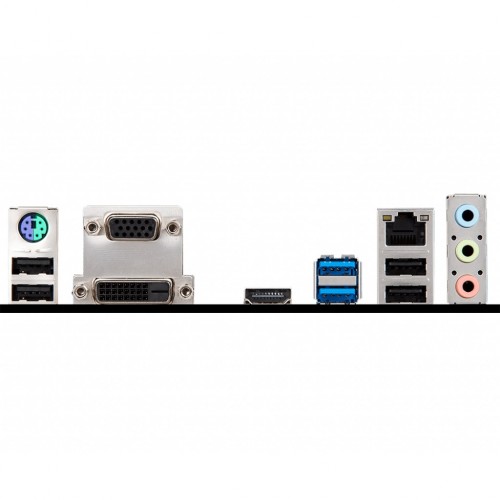

| Connector & Ports | ||
| HDMI | 1 x HDMI port, supports a maximum resolution of 4096×2160@30H | |
| USB (s) | 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) |
|
| LAN Port (s) | 1 x RTL8111H Gigabit LAN controller | |
| Supported Storage | Intel H310 Chipset 4 x SATA 6Gb/s ports Supports Intel® Rapid Storage Technology |
|
| Audio | Realtek ALC887/ALC892 Codec 7.1-Channel High Definition Audio |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x Clear CMOS jumper 2 x Front panel connectors 1 x Serial port connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Front panel audio connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector |
|
| DVI-D (s) | 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |
